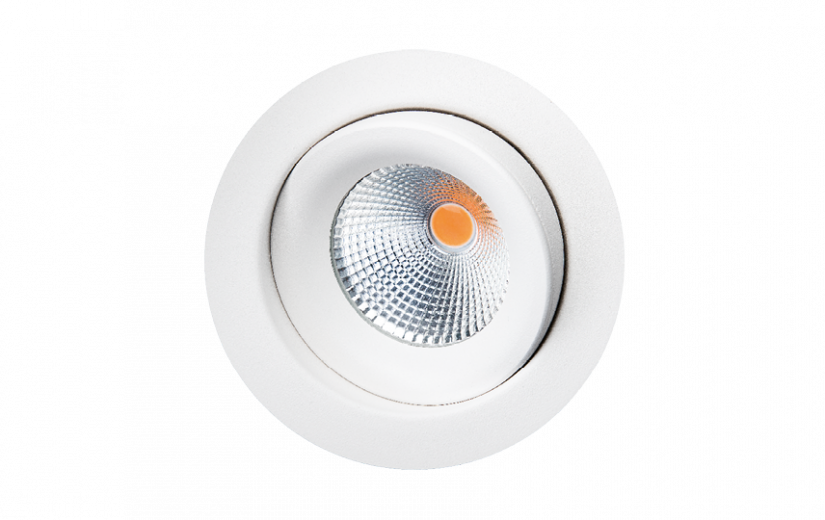

SG Armaturen Junistar Eco Isosafe Matte White 6W LED 3000K 8-pack 600 lumens
| Series | Junistar |
|---|---|
| Quantity per packaging unit | 8 |
Downlight/Spot/Floodlight |
|
| Outer diameter | 90 mm |
| Protection class | II |
| Width | 90 mm |
| Reflector | Glossy |
| Lamp holder/socket | None |
| Conductor cross-section | 1 mm² |
| Type of connection | Other |
| Housing/body colour | White |
| Surface protection | Powder coated |
| Voltage type | AC |
| With motion sensor | No |
| Suitable for lamp power | 7 W |
| Control gear | LED control gear constant current |
| Colour rendering index (CRI/Ra) | 90-100 |
| Recessed width | 68 mm |
| Recessed diameter | 83 mm |
| With light sensor | No |
| Suitable for pendant suspension | No |
| Lamp efficiency | 74 lm/W |
| Luminous intensity | 0 cd |
| Number of poles | 2 |
| Length | 0 mm |
| Height/depth | 40 mm |
| Housing/body material | Aluminium |
| Light source | LED not exchangeable |
| Installation length | 68 mm |
| Light output | Direct |
| Cover material | Transparent glass |
| Light distribution | Symmetrical |
| Impact resistance (IK) | IK00 |
| Rated voltage from/to | 230 V |
| Degree of protection (IP) | IP44 |
| With light source | Yes |
| Fire protection "D" | No |
| Covering with insulation | Yes |
| Suitable for number of light sources | 1 |
| Suitable for wall mounting | No |
| Suitable for recessed mounting | Yes |
| Control gear included | Yes |
| Suitable for computer workstation | No |
| Suitable for surface mounting | No |
| Beam angle | Wide beam 40-80° |
| Connectable conductor cross-sections | 0.5 to 2.5 mm² |
| Brushed surface | Yes |
| Colour temperature | 3000 K |
| System power | 7 W |
| Rated luminous flux according to IEC 62722-2-1 | 550 lm |
| Adjustability | Swivel |
|---|---|
| Suitable for pole/floor mounting | No |
| Suitable for truss mounting | No |
| Light colour | White |
| Suitable for track mounting | No |
| Suitable for clamp mounting | No |
| Luminous flux | 500 to 1000 lm |
| Type of wiring | Suitable for through wiring |
| Nominal lifetime L70/B50 at 25 °C | 0 h |
| Nominal lifetime L70/B10 at 25 °C | 0 h |
| Nominal lifetime L90/B10 at 25 °C | 0 h |
| Nominal lifetime L80/B50 at 25 °C | 50000 h |
| Nominal lifetime L80/B10 at 25 °C | 0 h |
| Energy consumption index for power supply (EEI) | Other |
| Nominal lifetime L90/B50 at 25 °C | 0 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Distortion (THD) | 0 |
| Photobiological safety according to EN 62471 | RG1 |
| Protection level (NEMA) | Other |
| Glow-wire test according to IEC 60695-2-11 | None |
| Rated ambient temperature according to IEC62722-2-1 | 25 °C |
| LED rated current at constant current | 0 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming mains voltage modulation | No |
| Dimming manufacturer specific | No |
| Trailing edge dimming | Yes |
| Leading edge dimming | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Touch dimmer | No |
| Dimmer function not present | No |
| Dimmer with push-button | No |
| Dimming Zigbee | No |
| Dimming depending on control gear | No |
| Suitable for low-voltage system | No |
| Dimming DSI | No |
| Luminous efficacy | 79 lm/W |
| Light distributor/diffuser | Reflector |
| Energy efficiency class of supplied replaceable lamps | A++ |
| Energy efficiency class of built-in lamps | A++, A+, A (LED) |
| Highest energy efficiency class for replaceable lamps | A++ |
| Lowest energy efficiency class for replaceable lamps | A++ |
| Suitable for ceiling mounting | Yes |
| Recessed height/depth | 40 mm |
| Power factor | 0 |
