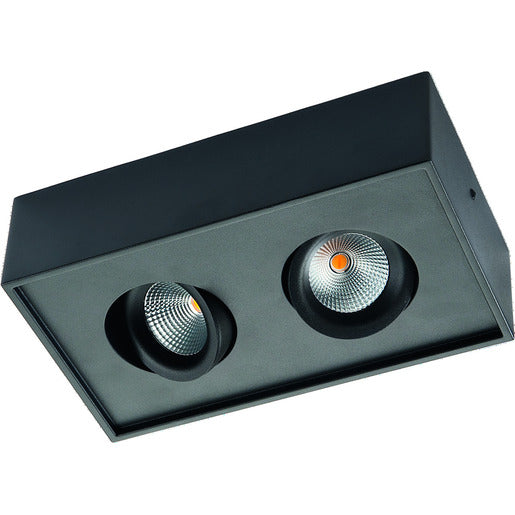

SG Armaturen Cube DimToWarm Black 2x6W LED 2000-2800K
SG Armaturen
|
|
|---|---|
| Series | Cube |
Downlight/Spot/Floodlight |
|
| Protection class | I |
| Width | 132 mm |
| Reflector | Glossy/High-gloss |
| Lamp holder/socket | None |
| Housing/body color | Black |
| Voltage type | AC |
| With motion sensor | No |
| Suitable for lamp power | 6 W |
| Control gear | LED control gear constant current |
| Color rendering index (CRI/Ra) | 90-100 |
| With light sensor | No |
| Suitable for pendant suspension | No |
| Length | 231 mm |
| Height/depth | 65 mm |
| Housing/body material | Aluminum |
| Light source | LED not exchangeable |
| Light outlet | Direct |
| Cover material | Glass transparent |
| Light distribution | Symmetric |
| Rated voltage from/to | 220 to 230 V |
| Ingress protection (IP) | IP21 |
| With light source | Yes |
| Fire protection "D" | No |
| Covering with insulation | No |
| Suitable for number of light sources | 1 |
| Suitable for wall mounting | No |
| Suitable for built-in/flush mounting | No |
| Control gear included | Yes |
| Suitable for computer workstation | No |
| Suitable for surface mounting | Yes |
| Beam angle | Wide beam 40-80° |
|---|---|
| Color temperature | 2000 to 2800 K |
| System power | 16 W |
| Nominal luminous flux according to IEC 62722-2-1 | 1020 lm |
| Adjustability | Swivel |
| Suitable for pole/floor mounting | No |
| Suitable for truss mounting | No |
| Light color | White |
| Suitable for track mounting | No |
| Suitable for clamp mounting | No |
| Nominal lifetime L90/B10 at 25 °C | 50000 h |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming mains voltage modulation | No |
| Manufacturer-specific dimming | No |
| Trailing edge dimming | Yes |
| Leading edge dimming | No |
| Programmable dimming | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Touch dimmer | No |
| Dimmer function not available | No |
| Dimmer with push button | No |
| Dimming Zigbee | No |
| Dimming dependent on control gear | No |
| Suitable for low voltage system | No |
| Dimming DSI | No |
| Energy efficiency class of built-in lamps | A++, A+, A (LED) |
| Suitable for ceiling mounting | Yes |
