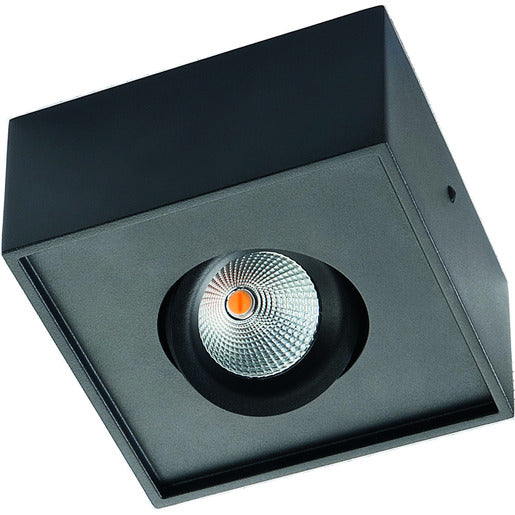

SG Armaturen Cube DimToWarm Black 6W LED 2000-2800K
| List | 74 |
|---|---|
| Series | Cube |
Downlight/Spotlight/Floodlight |
|
| Protection class | I |
| Width | 132 mm |
| Reflector | Glossy |
| Lamp holder/socket | None |
| Housing/body colour | Black |
| Voltage type | AC |
| With motion sensor | No |
| Suitable for lamp power | 6 W |
| Control gear | LED control gear constant current |
| Colour rendering index (CRI/Ra) | 90-100 |
| With light sensor | No |
| Suitable for pendant suspension | No |
| Length | 132 mm |
| Height/depth | 65 mm |
| Housing/body material | Aluminium |
| Light source | LED not replaceable |
| Light outlet | Direct |
| Material cover | Glass transparent |
| Light distribution | Symmetric |
| Rated voltage from/to | 220 to 230 V |
| Degree of protection (IP) | IP21 |
| With light source | Yes |
| Fire protection "D" | No |
| Covering with insulation | No |
| Suitable for number of light sources | 1 |
| Suitable for wall mounting | No |
| Suitable for recessed mounting | No |
| Control gear included | Yes |
| Suitable for screen workstation | No |
| Suitable for surface mounting | Yes |
| Beam angle | Wide beam 40-80° |
| Colour temperature | 2000 to 2800 K |
|---|---|
| System power | 7.3 W |
| Nominal luminous flux according to IEC 62722-2-1 | 520 lm |
| Adjustability | Swivelling |
| Suitable for pole/floor mounting | No |
| Suitable for truss mounting | No |
| Light colour | White |
| Suitable for track mounting | No |
| Suitable for clamp mounting | No |
| Nominal lifetime L90/B10 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming mains voltage modulation | No |
| Dimming manufacturer-specific | No |
| Trailing edge dimming | Yes |
| Leading edge dimming | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Touch dimmer | No |
| No dimming function | No |
| Push button dimmer | No |
| Dimming Zigbee | No |
| Dimming depending on control gear | No |
| Suitable for low-voltage system | No |
| Dimming DSI | No |
| Energy efficiency class of built-in lamps | A++, A+, A (LED) |
| Suitable for ceiling mounting | Yes |
